14 kW Generators
14RCA
Our most popular generators for backup power provide award-winning reliability and performance. When you lose power during an outage or storm, a hard-working 14/20 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on. Now also available in 3 phase.
Model Number: 14RCA
$4380.00* MSRP
Specifications
| Weight (lbs) | 440 |
|---|---|
| Weight (kg) | 200 |
| Dimensions | 777 mm x 712 mm x 824 mm (30.6 in. x 28 in. x 32.4 in.) |
| Controller | RDC2 Controller |
| Frequency | Hertz60 |
| Alternator Type | 2-Pole, Rotating Field |
| Engine Manufacturer | KOHLER |
| Fuel Type | FuelTypeNaturalGasLPG |
| Cooling Type | ProductCoolingAir |
| Cylinder Arrangement | V-2 |
| Displacement | 725 cm³ (44 cu. in.) |
| Engine Model | CH740 |
| Engine RPM | 3600 |
| Off-Grid Support | OffGrid,UtilityBackup |
| Remote Monitor | Included |
| Phase | SinglePhase,ThreePhase |
| Rated kW | 14 |
| Voltage | 120/240|277/480 |
| Gas Consumption (50% load) | 124 cfh |
| LP Consumption (50% load) | 60 cfh |
| LP Amps | 58 amps |
| NG Amps | 50 amps |
| Horsepower | NG 20.5 HP, LP 23.6 HP |
| Peak Motor Starting kVA | 33 kVa |
| Rated LP kW | 14 kW |
| Rated NG kW | 12 kW |
| Sound Level (Full Speed) | 67 dB(A) |
| Sound Level (Weekly Exercise) | 63 dB(A) |
| Voltage Regulation (Full Load) | ±1.0% |
*Starting price in US dollars. Does not include installation, automatic transfer switch, accessories or costs to export outside the US.

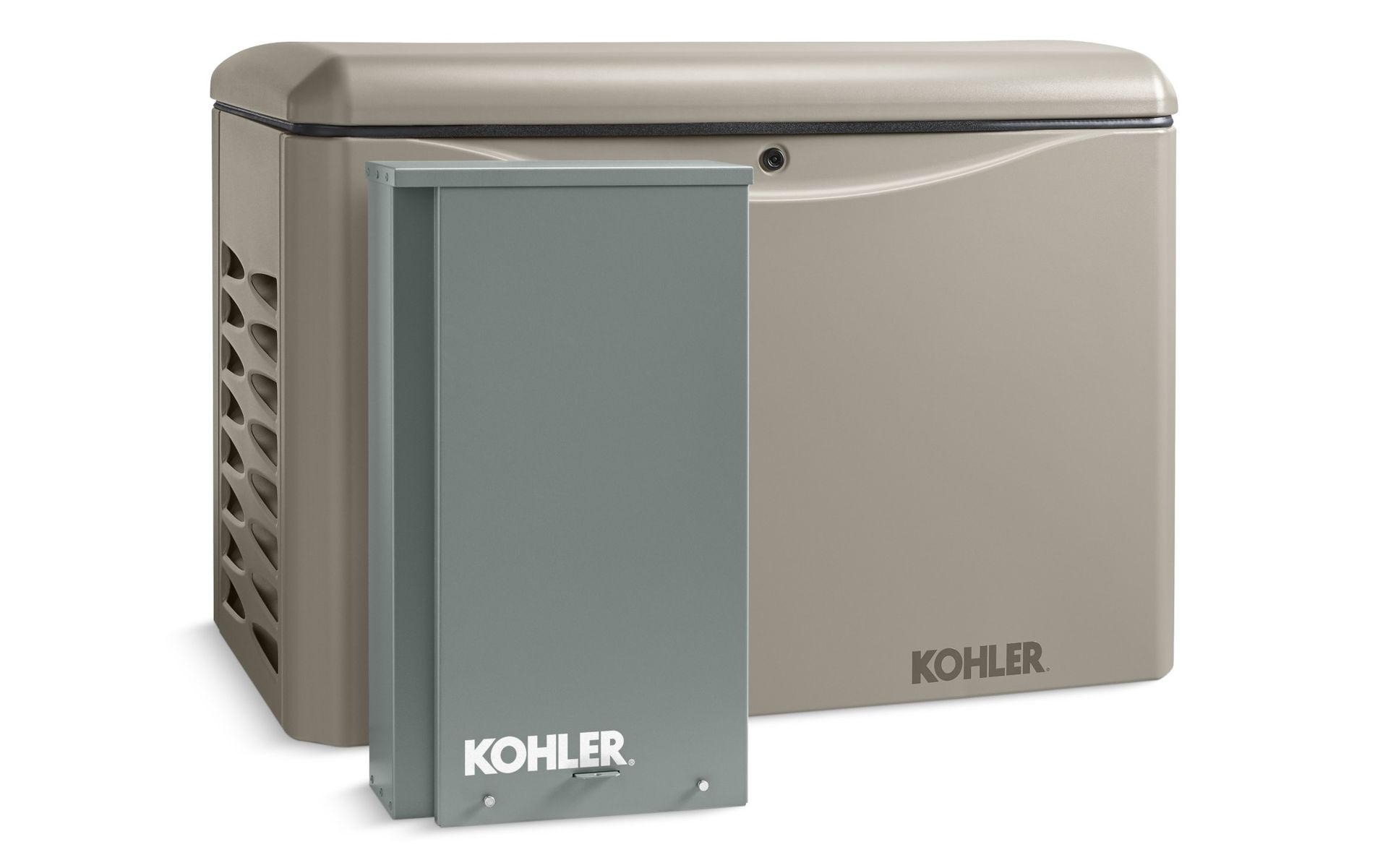

14RCAL
Popular generators for backup power, with an automatic transfer switch included. When you lose power during an outage or storm, a hard-working 14 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.
Model Number: 14RCAL
$4940.00* MSRP
Specifications
| Weight (lbs) | 500 |
|---|---|
| Weight (kg) | 227 |
| Dimensions | 1193 mm x 666 mm x 817 mm (47 in. x 26.2 in. x 32.2 in.) |
| Controller | RDC2 Controller |
| Frequency | Hertz60 |
| Alternator Type | 2-Pole, Rotating Field |
| Engine Manufacturer | KOHLER |
| Fuel Type | FuelTypeNaturalGasLPG |
| ATS Included? | Included |
| Cooling Type | ProductCoolingAir |
| Cylinder Arrangement | V-2 |
| Displacement | 725 cm³ (44 cu. in.) |
| Engine Model | CH740 |
| Engine RPM | 3600 |
| Off-Grid Support | OffGrid,UtilityBackup |
| Remote Monitor | Included |
| Phase | SinglePhase,ThreePhase |
| Rated kW | 14 |
| Voltage | 120/240|277/480 |
| Gas Consumption (50% load) | 124 cfh |
| LP Consumption (50% load) | 60 cfh |
| LP Amps | 58 amps |
| NG Amps | 50 amps |
| Horsepower | NG 20.5 HP, LP 23.6 HP |
| Peak Motor Starting kVA | 33 kVa |
| Rated LP kW | 14 kW |
| Rated NG kW | 12 kW |
| Sound Level (Full Speed) | 67 dB(A) |
| Sound Level (Weekly Exercise) | 63 dB(A) |
| Voltage Regulation (Full Load) | ±1.0% |
*Starting price in US dollars. Does not include installation, automatic transfer switch, accessories or costs to export outside the US.
